Manual retractable bollard SST-N5000
hydraulicroad blockersteel

manual retractable bollard
manual retractable bollard
manual retractable bollard
manual retractable bollard
manual retractable bollard
manual retractable bollard
manual retractable bollard
Add to favorites
Compare this product


Characteristics

Operational mode
manual
Type
hydraulic
Other characteristics
road blocker, steel

Description

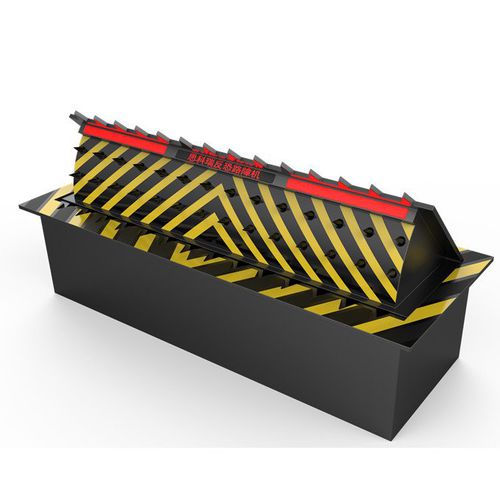

The road blocker is built with reinforced steel structure to stop heavy duty truck. It is operated by a high power hydraulic pump unit(HPU), which can be put outside with externally power coated cabinet. Our control box is PLC. We can programme the function to carter clients specific requirement. The Spike Road Barrier has a lifting height option from 300-800mm. The standard length is 3m and the max can be 6m. We can customize a hydraulic pump unit(HPU) to control several pcs blockers at one time. There will be just one PLC control box and one HPU with several road blockers. The blockers can be up and down together or separately. We will debug the system to suit a different requirement. System :Hydraulic Power Passing pressure:Can pass 120 tons of container trucks Voltage :3pahses 380V(Control voltage 24V),customized available System Dynamic power (w):3.75KW/5.5KW Rising time :≤1-3S(Adjustable) Lowering time :≤1-3S (Adjustable) Working Temperature :-35℃~75℃(suitable) Material thickness:16MM (standard) 20MM,25MM(Optional) Processing:A3 Spray anti-rust galvanized paint insider and anti-rust paint outsider Color:Various colors option Weight:1.2T IP rate:IP68 The hydraulic cylinder has a buffer function. It is fast speed and low noise. Buffer time:0.2-0.5s LED light with red, blue, green, yellow, purple, white color,and company information can be shown Gang-control interface with any access control system In case of a power outage, the spike road barrier can be manually raised and lowered with the manual pump on the HPU Reliable structure, heavy duty load, smooth action
