- SEFORM ELECTRONICS CO., LTD.

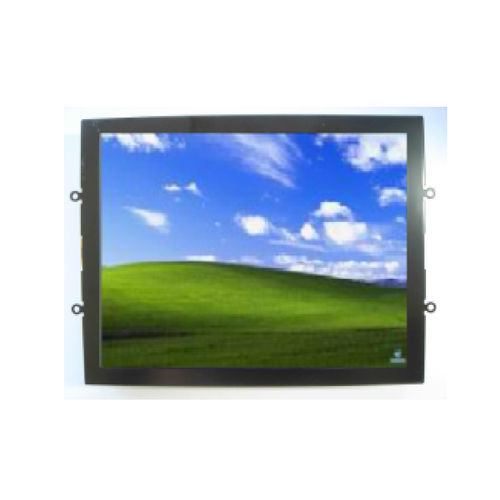

8" monitor SER800TPC-LHTFT-LCDtouch screenLED backlight
Add to favorites
Compare this product
Characteristics
- Technology
- TFT-LCD, touch screen, LED backlight
- Display size
- 8"
- Resolution
- 800 x 600
- Mounting
- open-frame
- Applications
- industrial, for industrial machines, for IoT applications, vehicle, versatile, for agricultural applications
- Other characteristics
- VGA, high-brightness, USB, wide temperature range, compact, Windows 7, embedded, high-performance, highly reliable, customizable, heat-resistant
Description
✩Model No. SER800TPC-LH
✩✩High Brightness Open-Frame Type 8” VGA TFT LCD Touch Module (Optional Sunlight Readable)
Feature
▶High Brightness 600 nits
▶LED Backlight With Lower Power Consumption
▶4:3 Aspect Ratio
▶Support VGA Resolution from 640x480~ 1920x1080 Pixels
▶Touch Screen Function
▶One VGA Input/Two Video Inputs/USB Interface
▶Auto Dimmer
▶Auto Power On/Off Function for VGA Mode
▶Wider Operating Temperature -10~+60℃
▶Wider DC Input 9-32V
▶Multi-Languages OSD Design (English, German, Spanish, French, Italian)
Certificate
▶CE/FCC/E13/RoHS Compliance
Touchkit Driver
▶vista / 9X / Me / NT4.0 / 2000 / XP / CE.NET/CE 2.12/3.0/ Dos
▶Mac OS 9X / OS X(Intel CPU)
▶Linux Readme/ Mandriva / Mandrake / Red Hat / Fedora Core /
▶SuSE / Debian / (K)Ubuntu / Yellow Dog
