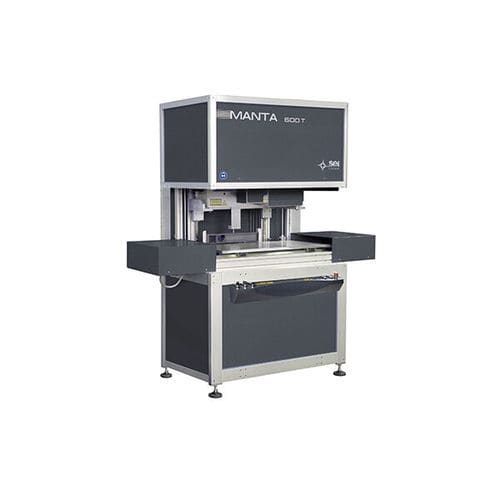

Fiber laser cutting machine Manta

YAG laserfor metalfor plastics

Maximum flexibilty for marking and engraving metal and plastic items of large dimensions. • - Processes: o - deep engraving of metals over a large work area o - marking and coding of metal over a large work area o - removal of coatings on metals o - marking and coding of plastic over a large work area o - cutting of thin metals (up to thickness of 0.4 mm) • - Processable materials: metal, plastic • - Sectors: automotive, marking and coding of metal and plastic • - Unique flexibility thanks to: o - innovative 3D-HS scan head with incorporated “full digital” control electronics o - pulse control of laser source (for effective power optimization) • - High quality marking thanks to laser spot diameter of less than 50 microns (work area: 450×450 mm) • - The integrated motorised Z axis enables positioning of material to be processed at correct focal distance • - Marking on steel in a single pass • - Maximum flexibility of use thanks to sliding table • - Work area: up to 450×1000 mm • - ICARO proprietary software • - Industry 4.0 Ready: full digital workflow integration Options: • - Sliding table • - CCD camera • - Single rotary attachment
