Worm gearbox BRM series
right anglesolid-shaft500 - 1000 Nm

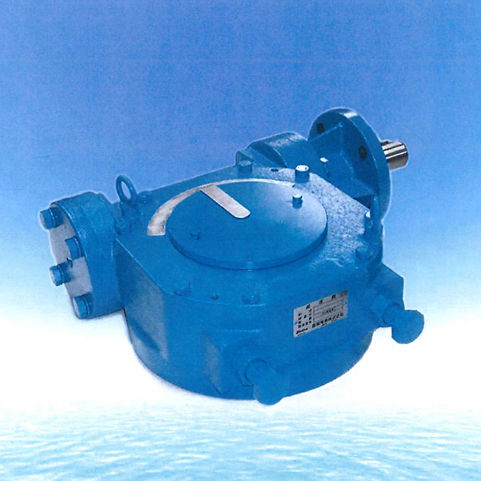

Worm gearbox - BRM series - Seibu - right angle / solid-shaft / 500 - 1000 Nm

Worm gearbox - BRM series - Seibu - right angle / solid-shaft / 500 - 1000 Nm - image - 2

Worm gearbox - BRM series - Seibu - right angle / solid-shaft / 500 - 1000 Nm - image - 3

Worm gearbox - BRM series - Seibu - right angle / solid-shaft / 500 - 1000 Nm - image - 4

Worm gearbox - BRM series - Seibu - right angle / solid-shaft / 500 - 1000 Nm - image - 5

Worm gearbox - BRM series - Seibu - right angle / solid-shaft / 500 - 1000 Nm - image - 6

Add to favorites

Compare this product

Characteristics

Type

worm

Shaft orientation

right angle

Shaft configuration

solid-shaft

Torque

500 - 1000 Nm

Configuration

compact

Applications

wheel

Other characteristics

aluminum, combined, manual, IP67

Weight

Max.: 1,120 kg
(2,469.18 lb)

Min.: 7.5 kg
(16.53 lb)

Description

Quarter turn Gear boxs with worm gear Manual type and combination with Electric actuator is available. BRM combined with multi-turn actuators (SemflexR-A/-VM/-VMM, and LTMD/LTKD) act as part-turn actuators. SMALL & LIGHTWEIGHT DESIGN EXCELLENT ENVIRONMENTAL RESISTANCE –Gear case is made of corrosion-resistant ductile cast iron (FCD450-10). –Sealed by O-rings or oil seals to provide dust and water intrusion protection (standard: IP67, option: IP68). VARIOUS SIZE –Torque range up to 150,000 Nm. –Valve fitting is compliant with the international standard ISO5211. LONG-LIFE DESIGN –It has excellent strength and durability. Gear case is ductile iron cast, worm is made of heat-treated carbon steel, and worm wheel is made of aluminum brass with high wear resistance. Moreover, maintenance is not required for a long time since long-life multi-purpose lithium-soap-based grease is filled up.
