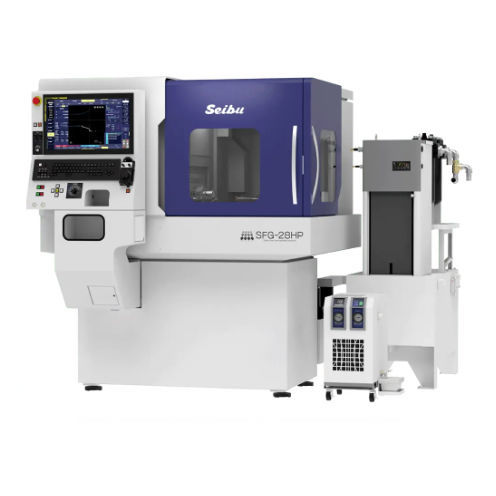

External cylindrical grinding machine SFG-28HPflatmotorvertical
Add to favorites
Compare this product
Characteristics
- Type
- flat, external cylindrical
- Applications
- motor
- Structure
- vertical
- Control type
- CNC, automatic
- Number of axes
- 2-axis
- Features
- stationary
- Other characteristics
- continuous
- Spindle speed
3,000 rpm
(18,850 rad.min-1)- Power
1.5 kW, 2.2 kW
(2.04 hp, 2.99 hp)- X travel
300 mm
(11.81 in)- Machine weight
2,200 kg
(4,850.17 lb)
Description
Standard chuck - 4 inch
Maximum gripping work size *1 - Φ80×L50
Rapid traverse speed (X,Z axis) - 4,000mm/min
Minimum setting unit (X axis is diameter) - 0.01µm
Scale (X,Z axis) - 0.01µm
Cross-saddle (top) center height - 105mm
Main spindle through-hole diameter - Φ20mm
Main spindle drive - Built-in
Main motor - AC spindle motor 1.5/2.2kW
(Continuous/15minute rating)
Main spindle C axis - Indexed contro
(l Sync control is optional)
Height from floor to main spindle center - 1,100mm
Machine dimensions - 1,684×1,870×1,776mm
Machine weight
Tank capacity - 270 or 370L(option)
