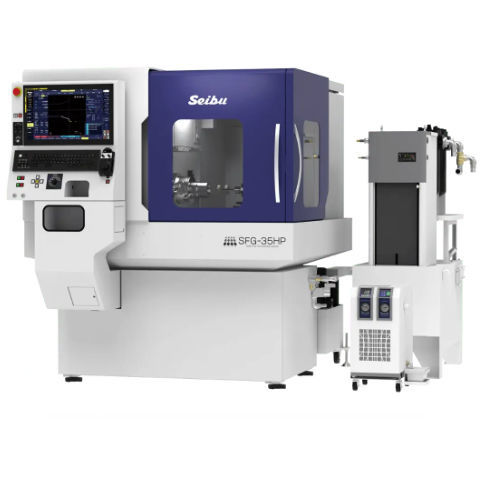

Flat grinding machine SFG-35HPmotorverticalCNC
Add to favorites
Compare this product
Characteristics
- Type
- flat
- Applications
- motor
- Structure
- vertical
- Control type
- CNC, automatic
- Number of axes
- 2-axis
- Features
- stationary
- Other characteristics
- continuous
- Spindle speed
3,000 rpm
(18,850 rad.min-1)- Power
2.2 kW, 3.7 kW
(2.99 hp, 5.03 hp)- X travel
350 mm
(13.78 in)- Machine weight
2,500 kg
(5,511.56 lb)
Description
Standard chuck - 6 inch
Maximum gripping work size *1 - Φ150×L150 *2
Rapid traverse speed (X,Z axis) - 4,000mm/min
Minimum setting unit (X axis is diameter) - 0.01µm
Scale (X,Z axis) - 0.01µm
Cross-saddle (top) center height - 105mm
Main spindle through-hole diameter - Φ32mm
Main spindle drive - Built-in
Main motor - AC spindle motor 2.2/3.7kW
(Continuous/30minute rating)
Main spindle C axis - Indexed contro
(l Sync control is optional)
Height from floor to main spindle center - 1,100mm
Machine dimensions - 1,690×1,980×1,776mm
Machine weight
Tank capacity - 270 or 370L(option)
