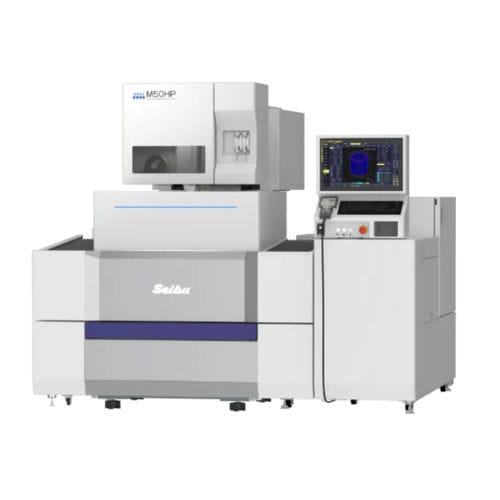

Wire electrical discharge machine M50HP
precisionCNC

Wire electrical discharge machine - M50HP - Seibu - precision / CNC
Wire electrical discharge machine - M50HP - Seibu - precision / CNC
Add to favorites
Compare this product

Characteristics

Type
wire
Other characteristics
CNC, precision
X travel

500 mm
(19.69 in)

Y travel

400 mm
(15.75 in)

Z travel

310 mm
(12.2 in)

Description

Max. workpiece dimensions - 850×730×300mm Max. workpiece weight - 800kg U-V axis travel - ±60×±60mm Max. taper angle - ±10°/work thickness300mm (±45°/40mm:Option) Dimensions - 1,915×2,260×2,035mm Weight - 3,300kg Wire diameter - Φ0.2mm is standard. Φ0.07～0.3mm Control device - Smart NC Power Supply - MPSC-20 Filtration device - MF50-01

Catalogs

No catalogs are available for this product.

See all of Seibu‘s catalogs
