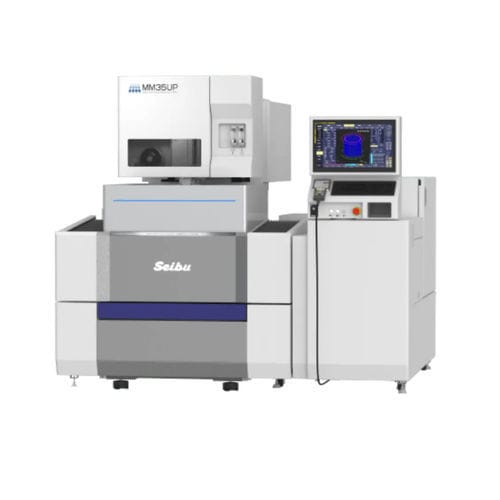

Wire electrical discharge machine MM35UPprecisionCNC
Add to favorites
Compare this product
Characteristics
- Type
- wire
- Other characteristics
- CNC, precision
- X travel
350 mm
(13.78 in)- Y travel
300 mm
(11.81 in)- Z travel
230 mm
(9.06 in)
Description
Max. workpiece dimensions - 700×630×220mm
Max. workpiece weight - 350kg
Axis travel range - 350×300×230mm
U-V axis travel - ±60×±60mm
Max. taper angle - ±10°/work thickness220mm
(±45°/40mm:Option)
Dimensions - 1,640×2,060×1,955mm
Weight - 2,700kg
Wire diameter - Φ0.2mm is standard.
Φ0.05～0.3mm
Control device - Smart NC
Power Supply - MPSC-20
Filtration device - MF35-01
M35HP
Precision machine
350×300
M35HP
Standard
Specifications - M35HP
Max. workpiece dimensions - 700×630×220mm
Max. workpiece weight - 350kg
U-V axis travel - ±60×±60mm
Max. taper angle - ±10°/work thickness220mm
(±45°/40mm:Option)
Dimensions - 1,640×2,060×1,955mm
Weight - 2,700kg
Wire diameter - Φ0.2mm is standard.
Φ0.07～0.3mm
Control device - Smart NC
Power Supply - MPSC-20
Filtration device - MF35-01
