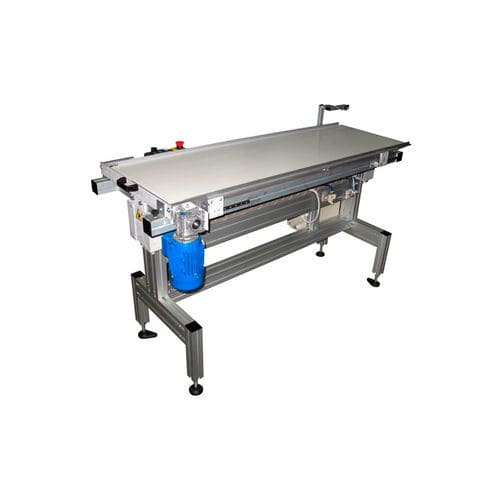

Belt conveyor SA-FC-LC-WBOMESH

mesh beltfor printed circuitsvariable speed

Used at exit of mesh belt reflow oven. Standard length is 1.300mm (can be customized). Variable speed control and full sensor adjustable. Additional Sensor at exit of reflow oven increase the interception of PCB manually placed into the reflow oven. Custom width dimension adapt this unit to all reflow oven on the market, no SMEMA required. Height: - 950 mm +/- 25 mm Width: - 400 mm PCB edge space: - Min. 3 mm Transfer direction: - Left to right Operating side: - Front of the machine Fixed Rail: - Front of the machine Interface: - SMEMA standard extended SMEMA Optional Fuji, Panasonic, Sanyo, Siemens, SMPI, Special SMEMA cable length: - 3 m
