CNC gear-hobbing machine SEIWA-ARTIS HB306z
for heavy-duty machining

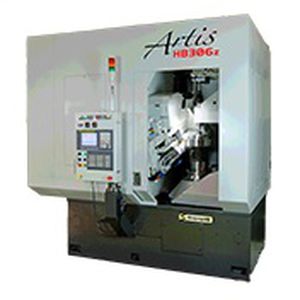

CNC gear-hobbing machine - SEIWA-ARTIS HB306z - Seiwa Corporation - for heavy-duty machining

CNC gear-hobbing machine - SEIWA-ARTIS HB306z - Seiwa Corporation - for heavy-duty machining - image - 2

Add to favorites

Compare this product

Characteristics

Control type

CNC

Other characteristics

for heavy-duty machining

Module

Max.: 12 mm
(0.47 in)

Min.: 0 mm
(0 in)

Part diameter

Max.: 300 mm
(12 in)

Min.: 0 mm
(0 in)

Spindle speed

Max.: 700 rpm
(4,398.23 rad.min-1)

Min.: 0 rpm
(0 rad.min-1)

Gear hob diameter

Max.: 180 mm
(7.1 in)

Min.: 0 mm
(0 in)

Description

High-end CNC Heavy Duty Gear hobbing Machine Max. workpiece diameter（mm）300 Max. workpiece module （mm）12 Diameter and length of hob, Max.(mm)180×200 Hob axial feed stroke, Max.(mm)320 Max. revolution of hob spindle（min-1）700 Max. revolution of work spindle（min-1）70 Hob head swivel angle（deg）±35° Hob shift stroke, Max.(mm)200 Hob, max. diameter x length（mm）180×270 Machine size（mm）W2,450xD3,255xH2,800 Machine weight（kg）11,000 NC systemFANUC 0i-Series Number of axes CNC controlled 6
