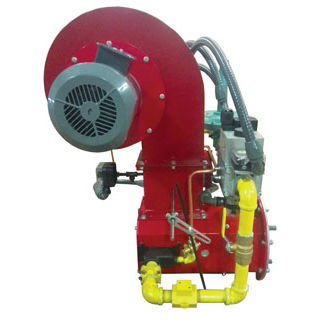

Pilot burner TFR series

premixnatural gasdirect fired

Custom Packages Provide Superior Performance The TFR Packaged Immersion Tube Burner is a pre-packaged burner system specially designed for small bore (2.5” to 8″ diameter) immersion tubes in liquid tanks. For use with Natural Gas or Propane, TFR packages are designed to produce high fire thermal inputs up to 3.5 MM Btu/hr. A robust, high velocity flame scrubs the tube surface promoting possible system efficiencies over 80%. Higher firing rates are possible with induced draft exhaust fans and/or higher capacity, external combustion air blowers. Features and Benefits External blowers available for higher heat output capable of firing into longer tubes than integral combustion blower Pilot gas train comes standard which ensures reliable ignition and flame stability Flame sensor and spark plug can be removed without removing burner casing for reduced maintenance time and effort 100% tested before leaving the factory to ensure reliable start-up Operating Principles Typical Applications Parts Cleaning Water Heating Salt Bath Heaters Produce Washing Quench Tanks Vaporizers Bottle Washers Plating Solutions Acid Bath Heaters Spray Washers Product Storage Tanks Liquid Tank Heating Specially designed for small bore tube applications Typical burner packages include: Basic burner assembly (burner, spark ignitor, flame rod, and peep sight) Integral combustion air blower fitted with TEFC blower motor (either 115/230/1/60 or 230/460/3/60) and air pressure switch Air and fuel control with control motor (Precision air/gascontrol)
