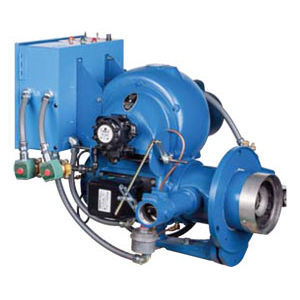

Pilot burner RAY

dieselgasdirect fired

Pressure Burners may be incorporated with all types of boilers, ovens, kilns, etc., up to 400 horsepower, to form completely automatic packaged burner units. Safety is provided by the latest types of electronic operating and safety controls which may either be burner mounted or enclosed in a control cabinet for integral or remote location. Where remote mounting is desired, the burner can be wired to a terminal strip to facilitate control wiring. Sizes 6, 7 and 8 are furnished with gas pilot ignition as standard. Diesel ignition is available. For forced draft firing, 3450 rpm motors are standard. Controls are available for fixed fire, low-fire start, low-high-low firing and full modulation on most sizes and types. One hundred percent of the combustion air is furnished through the burner for firing up to capacity ratings. On combination burners, changeover from one fuel to the other is accomplished by merely flipping a switch. Changeover may also be under the control of an outdoor temperature regulator or other remote switch.
