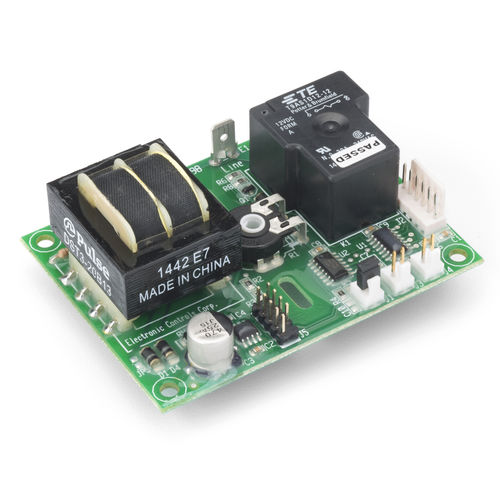

Electronic temperature switch 2698 SeriesHVACfor heating and coolingcompact
Add to favorites
Compare this product
Characteristics
- Heating technology
- electronic
- Applications
- HVAC, for heating and cooling
- Other characteristics
- compact, on/off
- Temperature
Max.: 140 °C
(284 °F)Min.: 0 °C
(32 °F)
Description
Description
Single output Cold/Hot Controller.
115/230VAC Power Supply, 30A Output, 2 thermistor inputs and more
UL Approved - E230832
Specifications
Features:
Cost effective ON/OFF Controller
Compact footprint for easy placement
High load power relay of 30A
Applications:
Freezers
Refrigerators
Ovens
Cooking equipment
Input Power:
115VAC/230VAC factory set
Input Sensors/Switches:
Up to 2 NTC Thermistor inputs
Optional External switch input
Onboard POT or connector for external POT
Outputs:
One 30A SPST or SPDT Relay
Add-Ons:
7-segment display with push buttons to display temperature and control setpoint
Operating Temperature:
0°F to 140°F
Dimensions:
3.40"L X 2.55"W
Approvals:
UL XAPX2 E230832; CAN/CSA XAPX8 E230832
Controller Type:
Open Board
