3-axis CNC milling machine TA-A series
horizontalfixed-bed40 tools

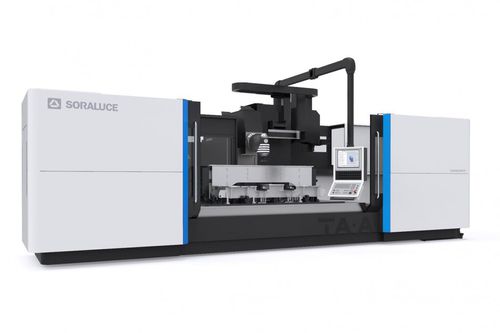

3-axis CNC milling machine - TA-A series - Select Machining Technologies - horizontal / fixed-bed / 40 tools
3-axis CNC milling machine - TA-A series - Select Machining Technologies - horizontal / fixed-bed / 40 tools
Add to favorites
Compare this product

Characteristics

Number of axes
3-axis
Spindle orientation
horizontal
Structure
fixed-bed
Number of tool stations
40 tools, 60 tools, 20 tools
Applications
for the mold industry, for matrices
Other characteristics
compact, high-precision, high-productivity, with automatic tool changer
X travel

2,000 mm, 2,500 mm, 3,500 mm
(78.74 in, 98.43 in, 137.8 in)

Y travel

1,200 mm
(47.24 in)

Z travel

1,250 mm, 1,500 mm
(49.21 in, 59.06 in)

Rotational speed

4,000 rpm, 5,000 rpm, 6,000 rpm
(25,133 rad.min-1, 31,416 rad.min-1, 37,699 rad.min-1)

Power

22 kW, 24 kW, 28 kW, 30 kW
(29.91 hp, 32.63 hp, 38.07 hp, 40.79 hp)

Work feed X-axis

25,000 mm/min
(16.4 in/s)

Work feed Y-axis

25,000 mm/min
(16.4 in/s)

Table load capacity

5,500 kg, 9,250 kg
(12,125 lb, 20,393 lb)

Description

High capacity and advanced technology in a compact machine SORALUCE head technology: a highly reliable, extensive range of SORALUCE heads SORALUCE Digital, Data System: a comprehensive monitoring package with continuous information of machine and process status Long-lasting precision, resulting from a strict design and assembly process Optimal stiffness and mechanical stability, providing high stock removal capacity for roughing operations Heavy duty machine, supporting workpiece loads of up to 7,800 kg. Total machine concept design: complete working area analysed for optimal comfort, safety and ergonomics (maintenance spots, operator area)
