CNC lathe MFB series
horizontal2-axisflatbed

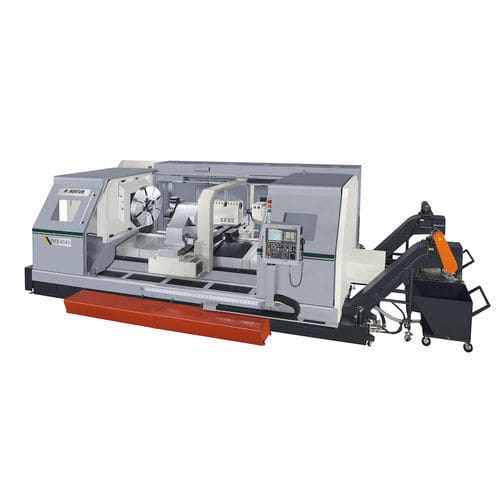

CNC lathe - MFB series - Select Machining Technologies - horizontal / 2-axis / flatbed
CNC lathe - MFB series - Select Machining Technologies - horizontal / 2-axis / flatbed
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Control type
CNC
Spindle orientation
horizontal
Number of axes
2-axis
Structure
flatbed
Number of tool stations
12 tools
Drive system
servo-driven
Applications
drilling
Associated function
boring
Diameter

1,320 mm
(51.97 in)

Spindle speed

600 rpm, 800 rpm
(3,769.911 rad.min-1, 5,026.548 rad.min-1)

Axe Z

4,080 mm
(161 in)

Rapids on X

10,000 mm/min
(7 in/s)

Nominal power

37 kW, 45 kW, 55 kW
(50.3 hp, 61.2 hp, 74.8 hp)

Overall lenght

8,200 mm, 9,300 mm, 10,350 mm, 11,350 mm
(323 in, 366 in, 407 in, 447 in)

Overall height

2,580 mm, 3,165 mm
(102 in, 125 in)

Weight

24,600 kg, 27,600 kg, 30,600 kg, 33,600 kg
(54,234 lb, 60,848 lb, 67,461 lb, 74,075 lb)

Description

Momentum’s unique MFB flat bed lathe series provides, in addition to its standard tool turret, a second set of Z-axis guide-ways with its own dedicated sub-carriage and head. This enables the interference-free use of long, deep-hole boring or drilling attachments. The MFB is perfect for cylinders and similar parts needing internal machining.
