hot water boiler / natural gas / biogas / fuel oil
YGNIS

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

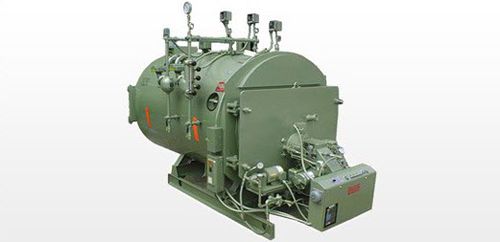

hot water boiler / natural gas / biogas / fuel oil hot water boiler / natural gas / biogas / fuel oil - YGNIS
{{requestButtons}}

Characteristics

  • Product:

    hot water

  • Power source:

    natural gas, biogas, fuel oil

  • Firebox:

    fire tube

  • Other characteristics:

    low-NOx, three-pass, horizontal

  • Power:

    Max.: 447,420 W (1,526,659.68 BTU/h)

    Min.: 14,914 W (50,888.66 BTU/h)

Description

The YGNIS Series of hot water boilers is a unique three pass, dual fuel (natural gas & #2 oil) horizontal fire tube, water-backed boiler design developed and perfected in Switzerland and now is a standard in the EU community.

Available in both high pressure and low pressure steam, this particular shell design overcomes thermal shock problems common to other multi-pass boilers. Thermal stress is greatly reduced because of two unique features of the furnace.

Firstly, the larger diameter, shorter furnace produces less thermal expansion than a furnace of an ordinary boiler. Secondly, the furnace end is supported by stays which are attached to the rear tube sheet. Tube sheet fatigue failures are eliminated because shear stress between the furnace and the rear tube sheet is greatly reduced. Solid Efficiency Up to 83% efficiency Three-pass design captures additional flue gas heat after heating primary surface Dual fuels: natural gas, #2 oil, biogas, LP gas Simplicity of Design No complex controls which require intensive training fewer moving parts reduces incidence of failure and required re-tuning. Compact Design Greatly reduced footprint, as compared to industry 3 and 4 pass fire tube boilers, given relatively large diameter and short furnace design Low NOx Emissions Less than 30ppm NOx standar and 20ppm NOx available.
