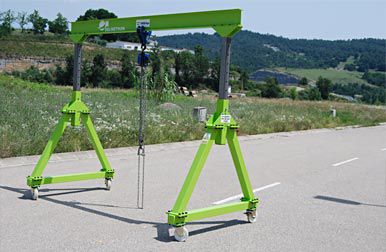

This type of gantry covers the same range as the PLE or PLM, up to 5,000Kg of load capacity and an adjustable height in steps of 100mm, up to a total variation of 1m. The maximum height is 5m.
Common features on all models -
All frames are CE safety (Machinery Directive 98/37/EC), and issued the corresponding certificate of conformity.
The gantries are equipped with polyamide or steel nucleus wheels and polyurethane strap. Therefore, its proper functioning requires a steady and flat ground with a maximum slope of 2%. Cement, reinforced concrete or asphalt grounds are perfectly valid. Slopes higher than 2% are available upon request.
The gantry can carry out a variety of basic movements combining the activation towards one side or the other, or by stopping one of the gantry’s two motors.
The bridge cranes come in ‘kits’ so that they are very easy to assemble, always following the instructions in the user’s manual; the joints of the mechanical parts are bolted, and the electrical connections are made through connectors and cables existing in the bridge crane.
Therefore, the user may assemble it with support from Selmetron S.L., or he may ask Selmetron S.L. to do it, as preferred.
Electric power source
All the models, both the PLM as the PMM, have a single point for connection to the power source. From it, the power is distributed to the gantry’s motors and to the hoist. The standard power is:
• 400 v. Triphase, 50 Hz, 3 phases + T
• 230 v. Triphase, 50 Hz, 3 phases + T
• 230 v. Monophase, 50 Hz, 2 phases + T
Other voltages are available upon request.
