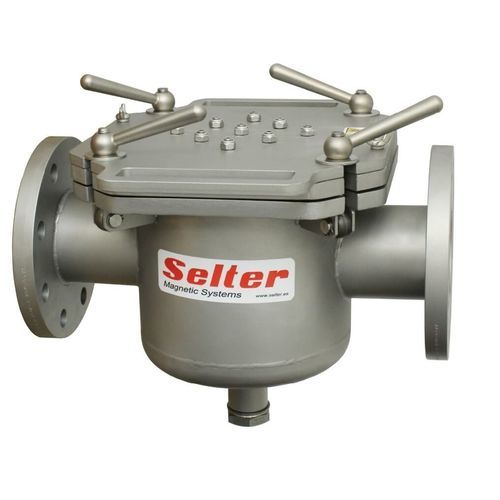

Liquid filter 20.54.320-100

particulatehydrauliccartridge

Description
Used to extract ferric particles from liquid products and to protect hydraulic circuits and cooling systems. Available in single-wall and double-wall versions with multiple capacity options and identifiable model codes.

Magnetic filters with single wall
CODE | Capacity (l/min) | A (mm) | B (mm) | C (mm) | nº bars | Pressure | Weight (Kg)
20.54.320-100 | 300 | 206 | 316 | 211 | 9 | 10 bar | 29
20.54.321-100 | 375 | 256 | 366 | 211 | 14 | 10 bar | 31
20.54.322-100 | 475 | 306 | 416 | 228 | 19 | 10 bar | 52

Magnetic filters with double wall
CODE | Capacity (l/min) | A (mm) | B (mm) | C (mm) | nº bars | Pressure | Weight (Kg)
20.54.300-100 | 300 | 256 | 366 | 228 | 9 | 10 bar | 39
20.54.301-100 | 375 | 306 | 416 | 228 | 14 | 10 bar | 54
20.54.302-100 | 475 | 324 | 466 | 228 | 19 | 10 bar | 60

Standard features

• Flange type EN1092-1
• Housing: AISI 304 stainless steel
• Maximum pressure: 10 bar
• Neoprene sealing gasket
• Surface treatment: Sandblasted
• Magnetic component: N52 grade neodymium permanent magnets
• Magnetic induction value on the surface of the bars > 12,000 gauss

Technical specifications

• Applications: separation of ferric particles in liquids, hydraulic circuits, cooling systems
• Available formats: single-wall and double-wall (codes and dimensions listed above)
• Capacities (l/min): 300, 375, 475
• Number of magnetic bars: 9, 14 or 19 depending on model
• Housing material: AISI 304 stainless steel
• Flange standard: EN1092-1
• Operating pressure: up to 10 bar
• Sealing: neoprene gasket
• Magnet type: Neodymium N52 (surface induction > 12,000 gauss)
• Surface finish: sandblasted

Additional information
Special finishes and sizes available upon request.
