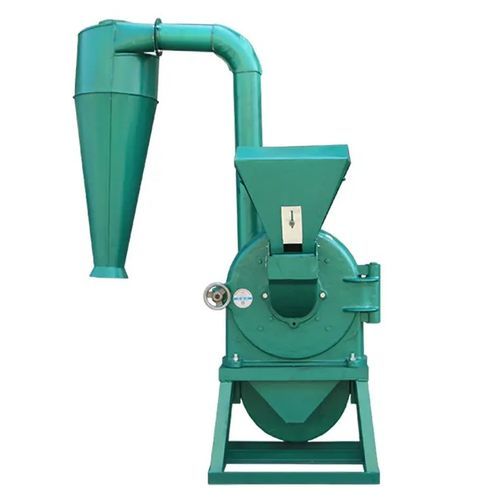

Roller crusher GWG series

stationaryfor laboratoryfine

Overview
The Tobacco leaf crusher GWG/GWD series is an industrial grinder designed for primary pre-processing of tobacco for solvent-based nicotine extraction and for other plant materials requiring controlled particle size.

Key features

• Uniform crushing: delivers consistent particle size distribution to increase surface area for improved solvent contact.
• Adjustable particle size: settings from coarse to fine to match extraction or downstream processing requirements.
• Q235 construction: structural components in Q235 with selected stainless-steel contact parts for durability and corrosion resistance.
• High throughput range: models cover capacities from 10 to 2000 kg/h to suit lab, pilot and industrial scales.
• Energy-efficient drive: optimized motors and transmission to reduce power consumption during continuous runs.
• Dust control: integrated dust reduction measures to protect product quality and reduce material loss.
• Serviceability: modular design and accessible components for maintenance and rapid replacement.
• Safety features: emergency stop and overload protection fitted as standard.

Applications

• Pre-processing of tobacco leaves for nicotine extraction using solvent-based methods.
• Size reduction of botanical and herbal materials for extraction, drying or further processing.
• Preparation of raw materials in chemical and pharmaceutical production lines where controlled particle size is required.

Benefits

• Improved extraction yield by increasing material surface area and ensuring uniform particle size.
• Flexible model range to match throughput and fineness requirements from R&D to full-scale production.
• Reduced operational costs through energy-efficient components and low maintenance design.

Technical specifications

• MODEL: GWG-18 — Capacity: 10-25 KG/H; Fineness: 10-120 MESH; Power: 2.2 KW; Voltage: 220/380 V; Dimensions: 550*420*1100 mm
• MODEL: GWG-20 — Capacity: 30-150 KG/H; Fineness: 10-120 MESH; Power: 4 KW; Voltage: 220/380 V; Dimensions: 750*550*1400 mm
• MODEL: GWG-30 — Capacity: 100-300 KG/H; Fineness: 10-120 MESH; Power: 5.5 KW; Voltage: 220/380 V; Dimensions: 770*750*1500 mm
• MODEL: GWG-40 — Capacity: 200-400 KG/H; Fineness: 10-120 MESH; Power: 7.5 KW; Voltage: 220/380 V; Dimensions: 870*750*1700 mm
• MODEL: GWG-50 — Capacity: 300-500 KG/H; Fineness: 10-120 MESH; Power: 15 KW; Voltage: 220/380 V; Dimensions: 900*850*1700 mm
• MODEL: GWD-20 — Capacity: 30-150 KG/H; Fineness: 10-120 MESH; Power: 6 KW; Voltage: 220/380 V; Dimensions: 1100*600*1650 mm
• MODEL: GWD-30 — Capacity: 100-300 KG/H; Fineness: 10-120 MESH; Power: 8.2 KW; Voltage: 220/380 V; Dimensions: 1300*700*1850 mm
• MODEL: GWD-40 — Capacity: 200-400 KG/H; Fineness: 10-120 MESH; Power: 11 KW; Voltage: 220/380 V; Dimensions: 1350*700*1920 mm
• MODEL: GWD-50 — Capacity: 300-500 KG/H; Fineness: 10-120 MESH; Power: 20 KW; Voltage: 220/380 V; Dimensions: 5000*1300*2700 mm
• MODEL: GWD-60 — Capacity: 400-1000 KG/H; Fineness: 10-120 MESH; Power: 28 KW; Voltage: 220/380 V; Dimensions: 5000*1500*2800 mm
• MODEL: GWD-80 — Capacity: 500-1500 KG/H; Fineness: 10-120 MESH; Power: 65 KW; Voltage: 220/380 V; Dimensions: 6500*1600*3500 mm
• MODEL: GWD-100 — Capacity: 600-2000 KG/H; Fineness: 10-120 MESH; Power: 98 KW; Voltage: 220/380 V; Dimensions: 9700*2000*4800 mm
