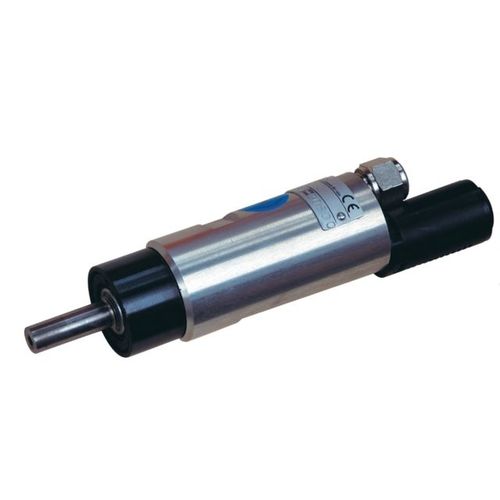

Vane air motor SERIE LFB

for atmospheres containing explosive dustfor agitatorsATEX

SENGA air motors are available in different versions: standard version, used with compressed air LUB version for self-lubricating pallets TOF version with non-lubricated air ATEX version for use in explosive environments These air motors operate at a nominal pressure of 6 bar. Lower values lead to a reduction in performance, while higher values have almost no influence on the technical data, but may limit the service life of the motor. A data sheet for this product is attached. On the data sheet, a table shows the variation in performance for different supply pressure values. STANDARD: For use with lubricated air LUB: With self-lubricating vanes (code + extension .6) The air is lubricated, but a seal prevents the oil from passing to the front of the motor to avoid splashing on the work station. TOF: Total Oil Free. Use with non-lubricated air, presence of self-lubricated and sealed bearings (code + extension .8) ATEX: For use in explosive environments (certified categories II2G and IIBT4) (code + extension .EX) SPEED: between 70 rpm and 28,000 rpm - no load CONSUMPTION: from 400 NL/min to 1300 NL/min - depending on model WEIGHT: between 1.80 kg and 2.10 kg Industry Industrial pneumatics Compressed air
