Crawler crane 6133
boomtelescopicconstruction

crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
crawler crane
Add to favorites
Compare this product


Characteristics

Configuration
crawler
Structure
boom, telescopic
Operating environment
construction
Applications
handling, transport
Engine type
diesel engine
Other characteristics
compact
Lift capacity

130 t (143 us ton)

Working height

Min.: 0 m (0'00")

Max.: 67 m (219'09")

Drive engine power

186 kW (253 hp)

Description

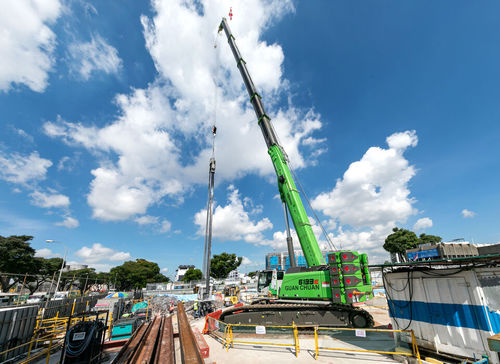

The perfect combination of maximum power and easy handling: the SENNEBOGEN 6133 E is the largest telescopic crane in the range. It combines a high load capacity and extensive reach with fast assembly and dismantling as well as cost efficient transportation. Its self-assembly system means that the machine can be assembled quickly without the need for an auxiliary crane. The removable crawler tracks ensure a narrow transport width. Well equipped: load capacity of 130 t and boom mounting of 12 m to 52 m Max. main boom length of 52 m with a 6-part boom Reach can be extended to up to 67 m using the optional 15 m fly boom Pick & Carry: can travel under load of up to 100 % Strong partner Excellent stability and good maneuverability thanks to the 5.40 m wide tracks 194 kW stage V diesel engine, 125 kN winches Excellent transport properties Total machine width can be reduced to under 4.0 m - for compact travel to the construction site Quick set-up time following transport - with the help of the innovative self-assembly system the Starlifter telescopic undercarriage is quickly ready for use Once the crawler tracks and ballast have been removed, the transport width is only 3.0 m

Catalogs

6133 E
6133 E
48 Pages
6133E
6133E
48 Pages
