Lifting platform control system K610

digitalanalogclosed-loop

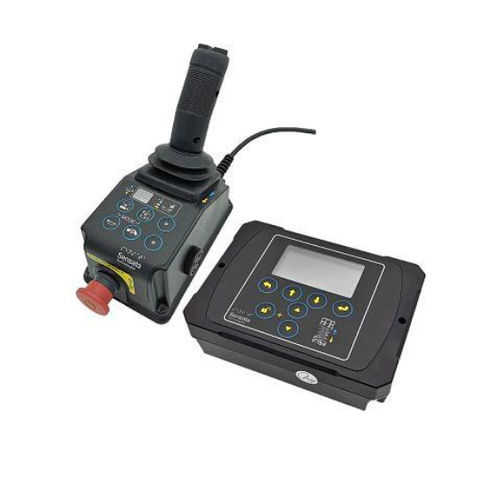

The K610 is a next-generation scissor lift controller featuring the CoDeSys platform. CoDeSys programming framework is integrated directly into the ECU, which enables manufacturers to create their own customized functionality. The K610 is committed to the full control of slab self-propelled scissor lifts. The key parts of the K610 Kit are the P610 (Platform Control Unit) and the E610 (Electronic Control Unit). The 2 units have been conceived as building block elements able to connect all digital and analog machine interfaces such as joysticks, sensors, limit switches, LEDs, motor controllers, pushbuttons, e-stop, and alarms and control them through a CAN bus system. • CoDeSys platform, module design and user-friendly software • Visual debug interface and on-line diagnostic. • 3 PWM channels with current feedback and closed-loop control • Support analog current & analog voltage multiplex Input • 2 Isolated CAN channels • Powerful MCU • Direction control switches integrated in the joystick grip • Large and multi-language LCD Display for an easy setting and machine control • Emergency Stop Pushbutton Custom Modifications • Custom overlay graphics • Custom grip • Configurable analog input ports
