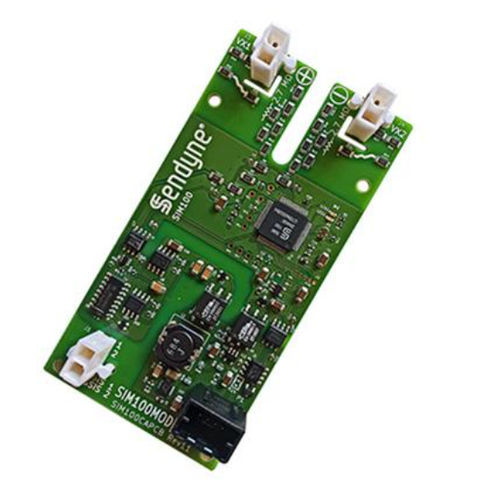

Insulation monitoring device SIM100MOD

The Sensata | Sendyne SIM100MOD is the first high voltage isolation monitoring / insulation monitoring / IMD device for Electric Vehicles (EV/HEVs) and charging stations capable of operating correctly even when the battery is active, and experiencing large voltage variations. The SIM100MOD continuously monitors the isolation resistance between a vehicle's IT (Isolated Terra) power system and chassis for deterioration of insulation and potentially dangerous levels of leakage current. Features • Measures voltage for each battery terminal to chassis • Reports battery voltage • Operates normally while the battery is having large voltage excursions and variations • Measures and reports modeled leakage resistances per model adapted by the safety standards ISO6469-1, FMVSS §571.305 and others • Reports calculated isolation resistance in Ω/V per requirements of the safety standards • Measures and reports the value of capacitance from each battery terminal to chassis • Calculates and reports the energy stored by the total capacitance between the battery and chassis • Continuously monitors connections of the voltage sense lines to the battery terminals; reports inadequate connections • Continuously monitors connection of the unit to chassis; reports inadequate connection Provides high immunity to common-mode noise that can be present on the battery terminals • Provides nonvolatile storage for the value of the maximum (design) voltage of the battery (used in calculations of the isolation resistance and stored energy).
