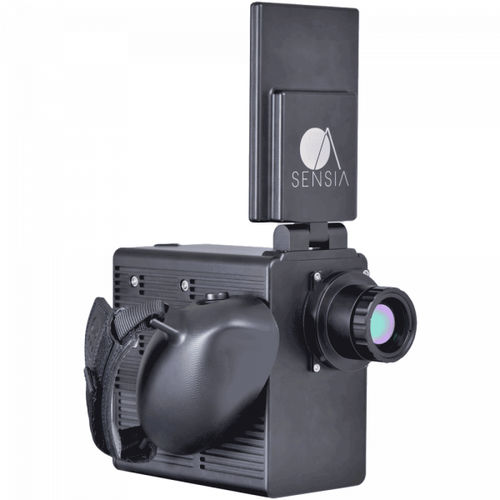

Digital camera Mileva 33-320

industrialfor gas leak detectionfor VOC gas leak detection

Mileva 33-320 is SENSIA’s latest model of Optical Gas Imaging (OGI) for the detection of fugitive emissions of hydrocarbon gases (HxCx). It integrates a spectrally optimized high-resolution cooled detector that increases the detection sensitivity to the next level. Mileva 33-320 by PASSIVE IR absorption can detect all the hydrocarbons and VOCS (including CH4) on the 3.2 – 3.4 μm wavelength. The detection distance is higher than 100m and VOC leak images and videos can be recorded and played inmediately. Base Specifications FPA : Cooled 320 x 256 px Pixel Pitch : 30 μm NETD : <10mK @ +50ºC Lenses : N: 12ºx9º | M: 18ºx13º Accuracy : ± 1ºC (from 0ºC to 70ºC Scene Temp.) Storage : SD card up to 256 GB Weight : 3,4 kg Autonomy : 3 x 3 hr Display : TFT LCD panel 5″ HD Max. Dimensions : 251 x 262 x 151 mm Operation Temperature : -10ºC to +50ºC MDLR (for CH4)* : 0,35 g/h Certifications : EMC (EN 61326:2013) IP 65 (EN 60529:2018) ATEX Zone II (EN 60079:2013) EPA OOOOa COMPLIANCE
