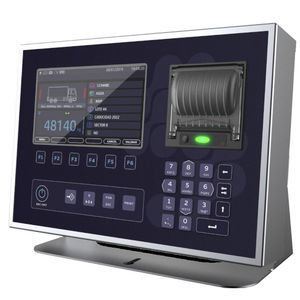

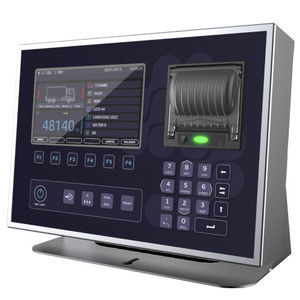

Digital weight indicator SC-A12 CRT

benchtoppanel-mountwall-mount

Graphic 7" weight compact-modular indicator for truck scales and axles weighing approved according to OIML R76 and EN 45501 (Class III - 10000 divisions) adapted for analogue and digital load cells. Designed to make everything easier. From visualization to data analysis and the creation of tickets and reports. Customizable from the parameters to its operating mode so that it becomes a unique equipment for you. Historical (Weighing registers) up to 1000 records. Keyboard Alphanumerical keyboard Material Stainless steel Homologation OIML R76//EN 4550 10.000e Clase III Dimensions 23,9x7,45x14,6 cmmm Temperature range -10 to 40℃ A/D Converter 24 bits (1.000.000 div) Min. input voltage per verification scale interval 0,6μV Voltage of the measuring range 5 - 15mV Minimum load cell impedance 40Ω Max. signal voltage for dead load 10mV Electromagnetic susceptibility 10V/m Power supply 80 - 264VAC Alibi Memory (DSD) 1 Communications Protocols Sensoc (ASCII Protocol) RS232 Port 1/2 RS485 Port 0/1 USB 2 Host, 0/1 Device Software • 5 types of weights (Entrance/Exit, Manual Tare, Memorized Tare, Direct Ticket and Manual weight) • Historical up to 1000 weights • 5 TABLES to include data such as product, company, origin, destination, etc. • +500 Records per table • Export and Import of table records in .csv files to view or edit in a spreadsheet • Configurable Ticket and Reports • User profiles • Load cell diagnostic
