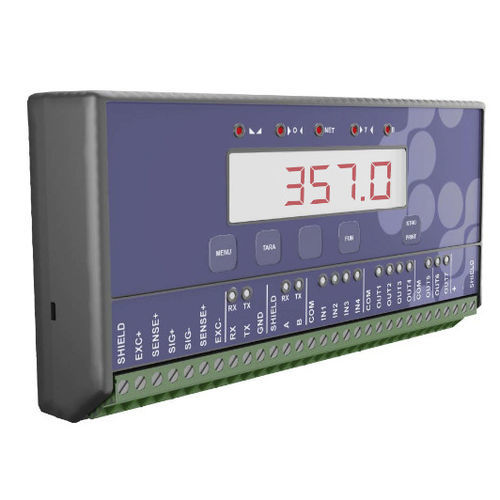

Digital weight indicator KRONOS

panel-mountDIN railanalog

High-speed weight indicator for industrial environments in static and dynamic weighing. • Adapt the equipment to your needs.  • Analogic and Digital version • Small size, and the possibility of PANEL or DIN-RAIL mounting. • Up to 7 digital outputs , 4 digital inputs, optional 1 analog output. • Different transmission CONNECTIVITY options to connect to remote devices such as PCs, PLCs, repeaters, etc. Keyboard 5 function keys Material ABS Dimensions 160x37x79mm Temperature range -10 to 40℃ A/D Converter 24 bits (1.000.000 div) Min. input voltage per verification scale interval 0.6μV Voltage of the measuring range 5 - 15mV Minimum load cell impedance 40Ω Max. signal voltage for dead load 10mV Electromagnetic susceptibility 10V/m Power supply 9 - 28VAC Alibi Memory (DSD) 1 Inputs and Outputs Digital inputs 4 Digital outputs 4/7 Analog outputs 0/1 Communications Protocols Sensoc (ASCII Protocol), Modbus TCP, Profibus, Modbus RTU/ASCII RS232 Port 1 RS485 Port 1 USB 1 Software Modbus RTU, ASCII and TCP: universal standard protocol to read system weight and/or modify indicator parameters remotely (PLC or PC application). SENSOLADDER Included ! Design your dosages according to the needs of the installation, open valves according to the weight of the indicator, add delays necessary for your system and much more!
