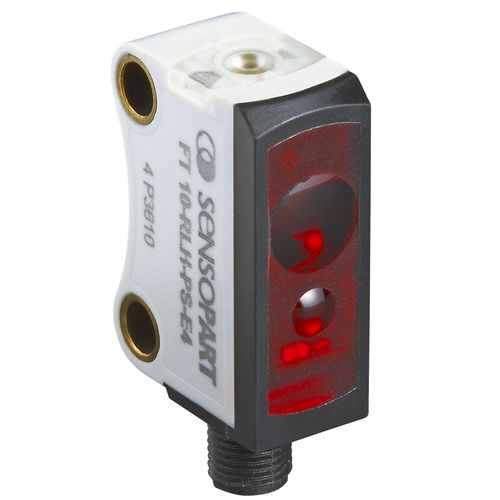

Laser distance sensor FT 10-RLA
miniatureIP67

laser distance sensor
laser distance sensor
Add to favorites
Compare this product


Characteristics

Technology
laser
Other characteristics
miniature, IP67
Range

Min.: 10 mm (0 in)

Max.: 70 mm (3 in)

Description

The FT 10-RLA demonstrates outstanding ability, even in extremely cramped installation conditions. As the smallest optical distance sensor in the world, it is ideally suited to challenging measurement tasks, e.g. during assembly of semi-conductor devices or in robotics applications. Highlights: - Minimum weight, ideal for robotics applications - Also suited to smallest installation space thanks to minimal dimensions - Output of measured values via IO-Link - Excellent sensor characteristics with repeat accuracy and linearity - Measuring range 10 to 70 mm - Laser class 1 for optimum eye safety
