Humidity controller FRS-M

Overview
The FRS-M is an automatic moisture control system designed for batch mixers. The system ensures that the full amount of required water is dosed at the start of the mixing cycle, a prerequisite to achieve consistent prepared sand quality in foundry and industrial sand processing.

Information brochures

• Automatic Moisture Control FRS-M (flyer)
• Capacitive moisture measurement on batch mixers
• Flow diagram FRS-M with SPC III
• Flow diagram FRS-M with SPC II / SPC IV
• Questionnaire Formsandmanagement

Example / Images

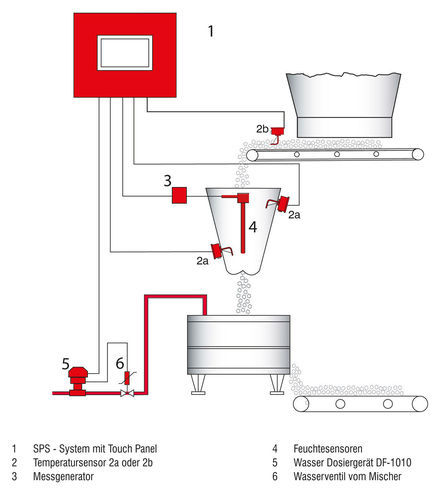

Illustrative example and product image of the Automatic Moisture Control at the Batch Mixer FRS-M are available for download.

Associated sensors / compatible components

• Capacitive sensor — SC 7100 (wedge-shaped)
• Capacitive sensor — SC 7200 (rod-shaped)
• Pt100 temperature sensors — TF 6 - 100; TF 6 - 200

Technical characteristics / specifications

• Product type: Automatic moisture control system for batch mixers
• Model designation: FRS-M
• Function: Automatic water dosing at batch mixers to ensure the full required water quantity is present when mixing starts
• Mode of dosing: Full dosing at start of mixing cycle
• Primary objective: Achieve consistent prepared sand quality for foundry processes
• Documentation: Flyers, technical flow diagrams and measurement documentation (PDF)
• Compatible sensors: SC 7100, SC 7200 (capacitive); TF 6 series Pt100 temperature sensors (TF 6 - 100, TF 6 - 200)
