LCD display HLM-CD

bar graphnumerichigh-definition

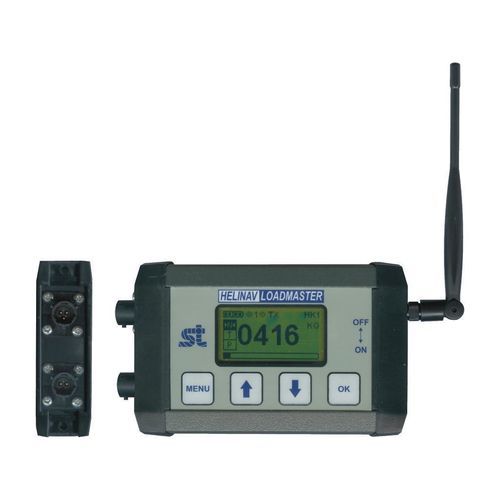

Overview: The HeliNav LoadMaster Cockpit Display is a compact, lightweight unit for cockpit or window mounting that displays real-time weight from HeliNav LoadMaster load sensors. It receives sensor data over the licence-free 2.4 GHz band and provides multiple user-selectable display views. The display includes a tare function to subtract equipment weight and shows cargo weight only. Operable from its rechargeable battery, it requires no fixed wiring, enabling quick transfer between aircraft. The unit can also be charged and operated from a 28 V supply and supports an external antenna.

Key Benefits:

• Reflective, sunlight-readable LCD for cockpit visibility
• Optional analog output for Cirscale meters
• RAM® 1" ball mount; base options available on request
• Multiple display modes: digital value and analog bar
• Tare function to zero out equipment weight
• Units supported: tonne, ton, kg, lb
• External antenna support

Options & Accessories:

• HLM-LC Wireless Load Sensor: Stainless-steel, strain-gauge tension sensor with wireless transmission to HeliNav displays; available in ranges from 1 to 10 tonnes.
• HLM-HR Handheld Receiver: Portable receiver to collect and view data from HeliNav LoadMaster wireless load sensors.
• HLM-RI Receiver Interface: Interface to convert HeliNav LoadMaster transducer data into analog or digital outputs for integration with data acquisition systems.

Technical characteristics / specifications:

• Wireless band: 2.4 GHz licence-free
• Display type: reflective, sunlight-readable LCD
• Display views: digital value and analog bar
• Tare function: yes
• Units supported: tonne, ton, kg, lb
• Power: rechargeable battery; can be charged/operated from 28 V supply
• External antenna: supported
• Optional analog output available for Circale/Cirscale meters
• Mount: RAM® 1" ball mount (base options on request)
• Compatible load sensor ranges: up to 10 tonnes (see HeliNav LoadMaster Load Sensors)
