High Voltage Ammeter Probe

Highlights

• Primary distribution probes for CT ratio testing
• Supplies an analog output for waveform analysis
• Fiber Optic Isolation cable brings the signal to ground
• Compatible with most portable test analyzers

Overview

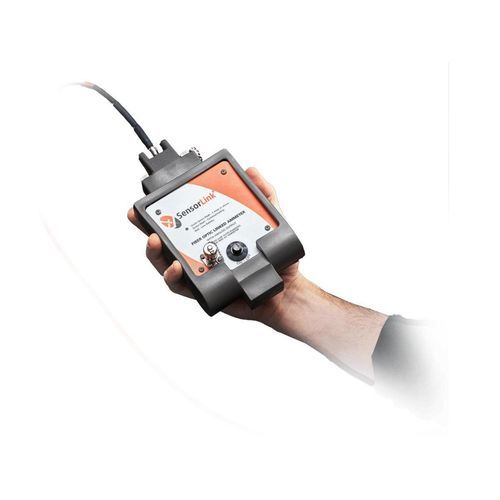

The Amp Litewire is a True RMS high voltage rated ammeter designed to measure True RMS current on the primary side of a distribution network. The sensor probe is attached to an insulated hot stick and positioned onto the medium or high voltage line. A fiber optic cable connects the sensor probe to a receiver unit at ground potential, which delivers the current waveform measurement as an analog output to a meter analyzer.

The analog output is a reproduction of the high voltage current waveform, accurate to the 50th harmonic, and available as a 0-2 volt AC signal at ground. This probe provides utilities the ability to use one of many sophisticated low voltage scopes, waveform acquisition recorders, analyzers, or other analysis instruments, which are otherwise not capable of analyzing measurements in primary distribution and high voltage environments.

The fiber optic cable is physically rugged, while providing a high speed data path required for digital waveform transmission. This cable is also the high voltage insulator between the two units, and is specified to provide 100 kV isolation per foot.

The sensor probe has no moving parts and does not require clamping onto the wire. The molded urethane housing is water resistant and will withstand high physical impact.

Accessories

• Sensor hanger assembly for 8-016 Amp LiteWire (Model #7-016)
• Sensor hanger assembly for 8-015 XT Amp LiteWire (Model #7-017)

Cases

• Hard Carrying Case for LiteWires (Model #7045)

Caractéristiques / spécifications techniques

• True RMS high voltage rated ammeter
• Measures True RMS current on primary side of distribution network
• Sensor probe attaches to insulated hot stick
• Fiber optic cable provides 100 kV isolation per foot
• Analog output: 0-2 volt AC signal at ground
• Accurate to the 50th harmonic
• Water resistant molded urethane housing
• No moving parts, no clamping required
• Compatible with most portable test analyzers
