- Detection - Measurement
- Force Measurements
- Reaction torque sensor
- Sensotec Instruments

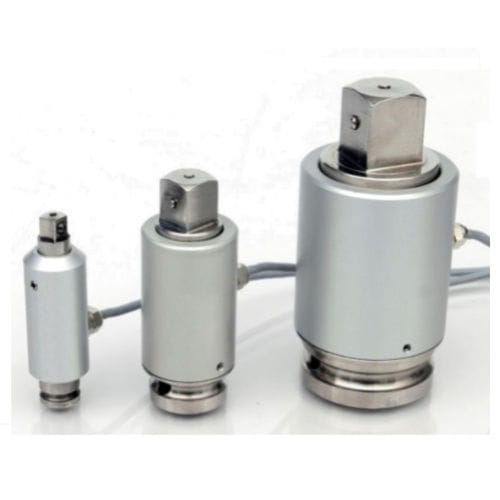

Static torque transducer TS411reactionsquare drivehigh-accuracy
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- static, reaction
- Configuration
- square drive
- Other characteristics
- high-accuracy
- Torque
Max.: 5,000 Nm
(3,687.81 ft.lb)Min.: 0 Nm
(0 ft.lb)
Description
Static reaction pair measurements; Range of measurement 0 to 1 Nm up to 5 KNm; Suitable for work in fatigue in applications in process or laboratory; Integrated TIDS module
Operating temperature: -15 / 70 ° C; Resistance of output: 350 +/- 2 Ohm; Output signal 2 mV / V. Excitation 10 Vdc. Linearity 0.2% FE.
Catalogs
TS411
2 Pages
