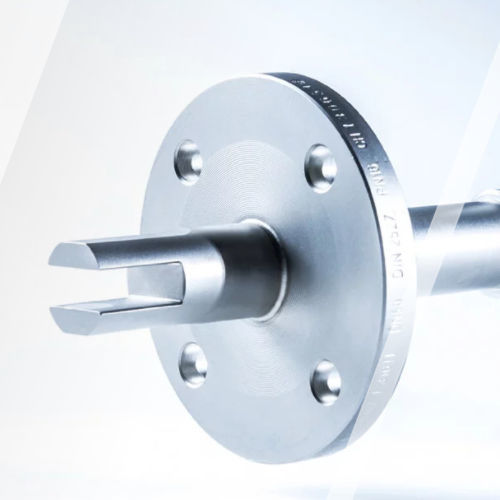

Density concentration sensor 40-40 Ex

The immersion sensor Ex 40-40 is the standard for all applications in potentially explosive atmospheres. temperature of liquid - standard: -20 °C to 120 °C optional: to 150 °C pressure - standard: 16 bar optional: to 500 bar sensor material - standard: stainless steel or Hastelloy optional: Titanium, Tantalum, Zirconium, Monel and other process connection - standard: flange DN 50 or ANSI 2" optional: other on request housing - process housing IP65 diameter of sensor head - 40 mm diameter of sensor bar - 40 mm immersion length - standard: 92 mm, optional: 150 mm, 250 mm, 500 mm, 1000 mm, 1500 mm, 2000 mm explosion proof - yes (ATEX, IECEx, FM) supply - 24 VDC, 3 W
