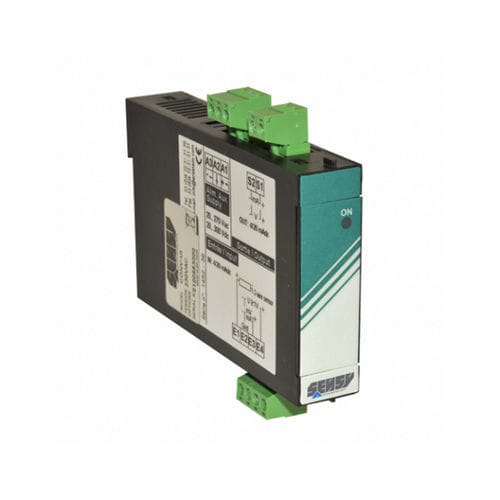

Measurement transmitter designed to convert any not normalised DC voltage or current signal into a normalized signal while providing galvanic insulation.
o Voltage or current input
o Galvanic isolation 2 kV RMS. 50 Hz during max. 60 s between input, output and power supply
o Selection of input and output ranges by jumpers behind the front plate
o Wide range of power supply
o Rail din mounting
o Weight: 130 g.
o Conform to EMC EN 50082-2
- Galvanic isolation of measurement signals
- Multiplication of measurement signals from a single source
