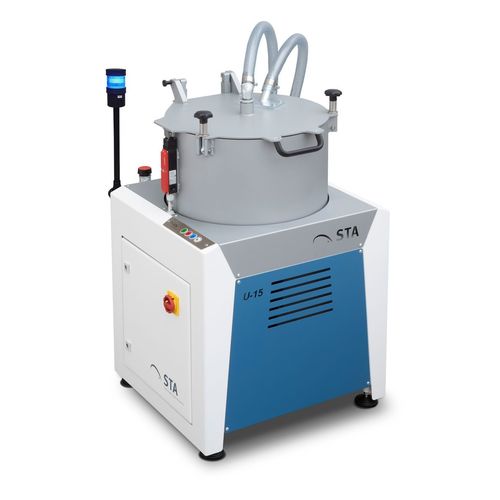

Cleaning centrifuge U-15

processverticalcompact

fluid-dynamically designed accelerator hub direct drive peeler tube, backflow head 5 m residual liquid drain at standstill With its large effective rotor diameter, the high-performance 4 kW drive, and thanks to the special inlet hub the separator U-15 achieves a very good separation level of down to 3 µm. The cleaned medium leaves the separator under pressure (5 m pumping head), the sludge is dry and can be removed without residual liquid. Due to the direct drive system the separator is very compact. Application: all kinds of industrial fluids, typically mechanical processing (coolant lubricant emulsions and oils, washing or vibratory grinding fluids), surface treatment or glass grinding. The separator U-15 is also available in 3-phase version (simultaneous separation of a light secondary liquid phase, e.g. tramp oil)
