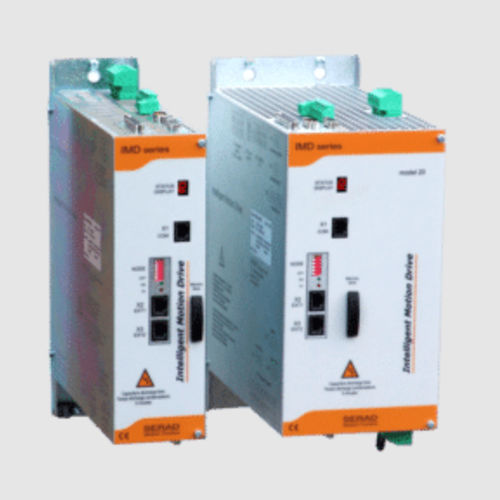

Single-phase servo drive IMD series

brushlessModbusEthernet

IMD servo drives are especially suitable for high dynamics and high precision. They integrate the power supply, braking resistor, mains filter and safety function. Thanks to their inputs/outputs and integrated PLC functions, they are suitable for a wide variety of applications. Industrial Ethernet communication busses provide networked configurations. The user-friendly parameterization software offers functions for easy setup and diagnostics. Three-phase or single-phase power supply Integrated network filter Safety function SIL2 Torque mode Torque mode Positioning mode MOTION functions : S-curve Electric shaft Cam profiles Synchronization Camboxes Triggered movements Communication : EtherCAT CANopen Modbus TCP iDPL Software Workshop The iDPL software tool makes it very easy to configure IMD, IMDL and IMDC series drives from a PC using its graphical tool. The path generator and oscilloscope functions ensure fast and optimal implementation. Multi-drives project (1 same project for a set of drives) Multi-windowing Tool Boxes Autotuning Graphical cam profile editor Integrated help
