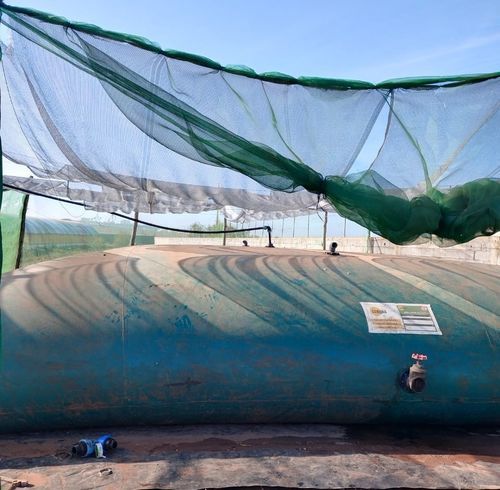

Firefighting tank

water storagefor firefightingpolyethylene

Overview
Flexible tanks intended for water storage for firefighting, offered in aboveground and frost-protected configurations with suction solutions (suction column or hydrant post). These tanks comply with Interministerial Circular No. 465 of 10 December 1951 and are designed for professional, operational use.

General information

• Professional range of flexible fire tanks, compliant with Interministerial Circular No. 465 of 10 December 1951.
• Local requirements may vary depending on the competent Departmental Fire and Rescue Service (SDIS).
• Water take rule: 1 suction point per 120 m3 (example: 2 suction points in DN100 for a 240 m3 tank).

Aboveground flexible tanks

• Equipped with one or several 100% INOX suction flange blocks with integrated INOX anti-vortex.
• Valves in DN100 (brass) for effective flow.
• Firefighter coupling and thermal sleeve included for frost protection.

Frost-protected flexible tanks (with suction column or hydrant post)

• 100% INOX suction column or blue hydrant post available.
• 100% INOX suction flange block with integrated INOX anti-vortex.
• Buried connections possible via PVC pipes to link the tank to the column or post (protection against vandalism and secured access for intervention).

Technical characteristics / specifications

• Compliance: Interministerial Circular No. 465 of 10 December 1951.
• Suction flange block: 100% INOX with integrated anti-vortex.
• Valve materials: DN100 brass.
• Operational fittings included: firefighter coupling and thermal sleeve (for frost protection).
• Suction options: 100% INOX column or blue hydrant post.
• Buried connections: PVC pipes possible to link tank and column/post.
• Hydraulic sizing: 1 suction point per 120 m3 (practical example: 240 m3 → 2 DN100 suction points).
