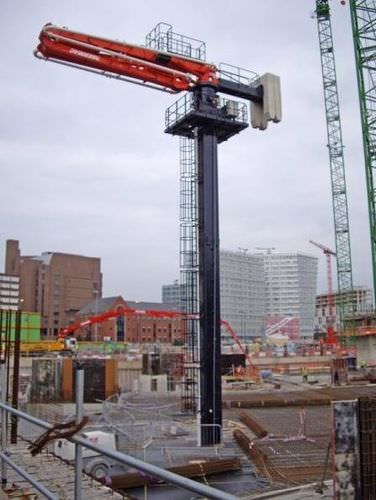

Concrete placing boom ø 125 mm, 4 m | BS series

The placing boom SERMAC series BS have folding type "R" or "Z" with 4 sections. The equipment has a 1st section boom “separate” to ensure fast assembly on the job-site with rapid connections to connect hydraulic flexible hoses. The placing booms BS are available with or without counterbalance in accordance with the job-site requirements and are supplied with the following: Joint for continuous turret rotation Speed joint of the under turret group to the bearing structure (turret or frame work column) with four fixing pivots which can be disassembled and two fix centring pivots Concrete pipeline Ø 125 mm (5”) Rubber end hose, standard length Proportional radio remote control for the boom activation and proportional emergency radio remote control with maximum branching cable length 30 m Climbing tower electro-hydraulic gear case with electric motor three phase (15 kW) utilizable by power 380V – 415V – 440V Automatic anchoring system (mechanic) of 2nd section on 1st section Working platform on 1st section for assembling and maintenance
