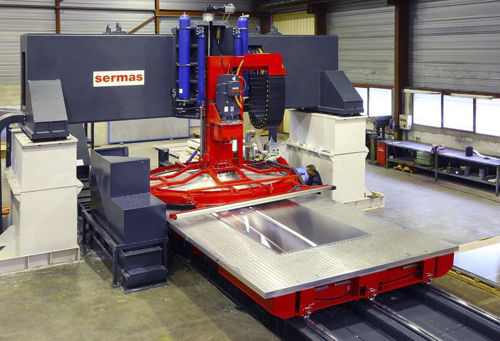

3-axis milling machine

verticalfor productionfor plates

A new generation of machines to mill ALUMINIUM plates (Al & alloys) Combined with the slicing saw, it will allow you to produce ACP This machine is used to finish the surface of the sawn plate, to get Aluminium cast plate with a roughness surface similar to the rolled plates. Intelligent solution: Sermas’ milling machine is able to mill plates up to 7500mm x 3200 mm Technical data: Length - : up to 7500 mm Width - : up to 3200 mm Thickness - : up to 200 mm Plate thickness - : 5 to 200 mm Milling depth - : 0,1 to 1 mm (typ.0,3mm) Roughness Ra - : Ra 0,4 µm Thickness tolerance - : ± 0,15 mm Optional equipment to manipulate the plate and protect the finished surfaces: . Plate vacuum manipulator . Plate tilting device . Film coating machine . Table cleaning device Main advantages: • For production of plates up to 3.2m-width ! • Possibilities to mill simultaneously several plates • Cost effective, affordable investment
