Circular sawing machine

for metalsfor cylindrical productspneumatic

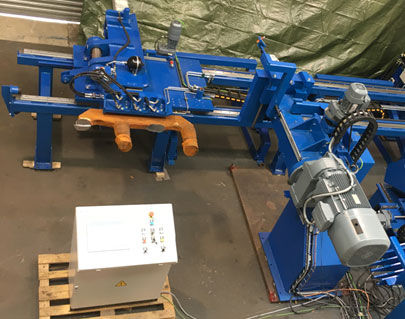

Sermas developed for you a new Anode Stub-Saw. Efficient, robust and economical this saw is to cut used part of stub and prepare the surface for the welding of a new stub portion. The stem is loaded/unloaded on the saw thanks to on overhead crane and a handling beam. The operator select the stub to be cut and set the saw head at the required position along the stub, then the cut is made. CHARACTERISTICS . Blade type: Disk with screw fixed carbide tips . In-feed motor power: 0.25 kW . Blade motor power: 15 kW . Typical productivity: 4 stems/hour (cutting 4 stubs on each stem) . The stub saw is to be installed in the anode stem repairing workshop The stem is clamped by pneumatic cylinders Chips are collected into a bin Possibility in option to load the stem with the yoke in vertical position
