A professional system, high performance and reliability, designed for the treatment of shock eco-friendly by ozonation in grain silos, steel galvanized, with capacities of 25, 50 and 100 m3. The treatment is performed with the silos empty, resulting in a period of one to two hours, without the use of any type of chemical. Will be deleted fungi, viruses, bacteria, spores and insect eggs. The few insects that manage to survive the treatment will no longer be able to reproduce.
Our machines are manufactured with robust components industrial european, very reliable and durable.

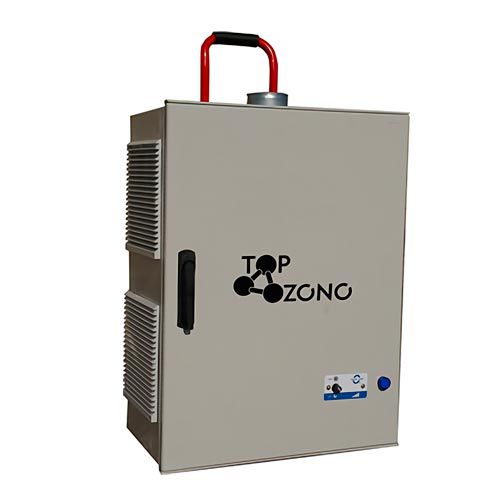

Ozone generator portable
-Box of polyester, with a mouth of 100 mm for the connection to the tube.
-Timer controlled by a microprocessor.
-Reactors made of stainless steel. Working in 3 groups of power output (8, 12, and 24 g), in function of the dimension of the silo (25, 50 and 100 m3), at dilutions of O3 near the 0,24 ppm.
-Incorporates a powerful turbine of 600 m3 / hour, for power boost and deal efficiently with the generated Ozone.
-It is portable, mounted on a cart for easy transportation.
-Case size (without cart): 74,7 x 53.6 x 30 cm
-Approximate weight: 12 Kg.
The generators of Top Ozone do not produce aluminum, very toxic heavy metal, as it does not use reactors ceramic but made of stainless steel.
Application form
-Once you have cleaned the silo, it will introduce the Ozone gas to the silo through two ducts, simultaneously. One for the top and the other at the bottom.
-It will be in temporary groups of 20 minutes of Ozone generation and 15 minutes of remnant (so as to let the residual work for 15 to 20 minutes)
