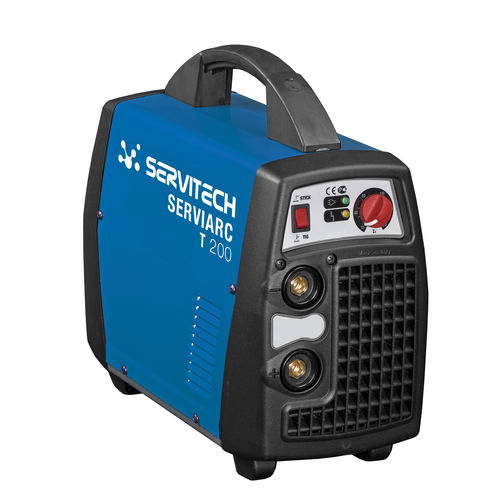

Serviarc T 200
Welding inverters designed to work with unstable supply voltages caused by use of power units and long connection lines.
Product Description
Nom
Serviarc T 200
Input Voltage
(3ph) 230V 50/60Hz
Power 60%
5 KW
Uo
60 V
Work Range
5 ÷ 200 A
Amp. 60974-1
35% 200 A
60% 150 A
∅E
1.6 ÷ 5.0 mm
Insulation
H
Protect Degree
IP22S
Dimens. (LxWwH)
360×155×320 mm
Box (LxWxH)
470×195×365 mm
Weight box/net
7.8 / 7.2 Kg
Code
S110235032
Welding inverters designed to work with unstable supply voltages caused by use of power units and long connection lines. Able to meet the requirements of even the most demanding user with a wide range of currents and a high work cycle. Excellent welding features guaranteed with all types of commercial electrodes (rutile, basic, stainless steel… etc)
Equipped with special features controlling excess input voltage, overheating and electrode sticking, functions which protect generators even in the harshest working conditions. The TIG/MMA switch also enables use for TIG Lift Arc Welding. Suitable to weld aluminium and cellulosic electrodes. The hifh duty cycle makes these inverters suitable for use on heavy steel structural work, in industry and by professional.
