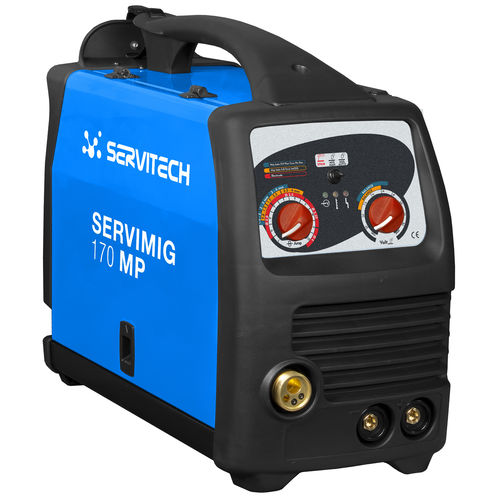

MIG-MAG welder Servimig 170 MPportableinverter
Add to favorites
Compare this product
Characteristics
- Technique
- MIG-MAG
- Other characteristics
- portable, inverter
- Intensity
Max.: 170 A
Min.: 25 A
Description
Servimig 170 MP
MAIN FEATURES : Inverter Technology – Automatic line voltage compensation – Light and versatile – Patent usefull torch storage and cable wrapper – Easy to set thanks to the printed welding parameters – Excellent results even for novice users – Power generator friendly.
Product Description
Nom
Servimig 170 MP
Input Voltage
(1ph) 230V 50/60Hz
Power 60%
3,5 KVA
Uo
27/55 V
Amp. Min-max
25 ÷ 170 A
Amp. 60974-1
25% 170 A
60% 110 A
100% 85 A
Aluminium
0,8 ÷ 1,0 Ø mm
Steel
0,6 ÷ 1,0 Ø mm
Flux Core
0,8 ÷ 1,0 Ø mm
Stainless Steel
0,8 ÷ 1,0 Ø mm
Brazing
0,8 ÷ 1,0 Ø mm
Ø Electrode
Ø 1,6 ÷ 3,25 mm
Electrode Type
6013 – 7018 – CrNi
Insulation
H
Protec. Degree
IP22S
Dimens. (L*W*H)
480x220x385 mm
Box (L*W*H)
590x260x455 mm
Weight net
14 / 12 Kg
Code
S110235063
Catalogs
Servimig 170 MP
1 Pages
SERVIMIG170MPXL
1 Pages
