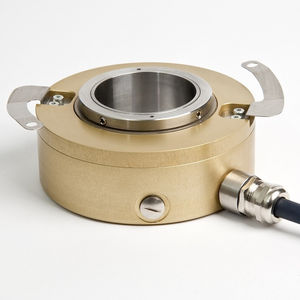

Incremental rotary encoder G24opticalsolid-shafthollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- incremental
- Technology
- optical
- Construction
- solid-shaft, hollow-shaft
- Output signal
- analog, digital output, RS-422
- Material
- polypropylene
- Protection level
- IP54, IP66, IP64
- Incremental encoder résolution (pulses per revolution
Max.: 1,024 unit
Min.: 10 unit
- Housing diameter
Max.: 6 mm
(0.24 in)24 mm
(0.94 in)Min.: 2 mm
(0.08 in)- Shaft diameter
Max.: 6 mm
(0.24 in)Min.: 3 mm
(0.12 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Process temperature
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Catalogs
G24
4 Pages
