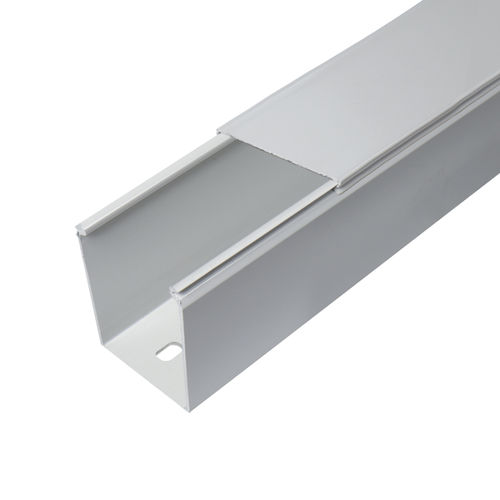

Cabling trunking GN-HF-SABShalogen-free
Add to favorites
Compare this product
Characteristics
- Function
- cabling
- Material
- ABS
- Other characteristics
- halogen-free
- Width
Max.: 60 mm
(2.36 in)Min.: 30 mm
(1.18 in)- Height
Max.: 80 mm
(3.15 in)Min.: 30 mm
(1.18 in)
Description
Material: PC/ABS, halogen free
Colour: light grey RAL7035
Operating temperatures: -25 to +90°C
Volume resistivity: 1015 Ω.cm
Dielectric strength: 35 kV/mm
Specification: V0 UL94
NF F 16-101/102 : I3/F2
DIN 5510-2 : S4-SR2-ST2
EN 45545-2 : R22 HL3, R23 HL3
Standard length: 2 meters
Double sided adhesive tape: on request
Minimum quantity: 1 complete pack
(incl. lids)
