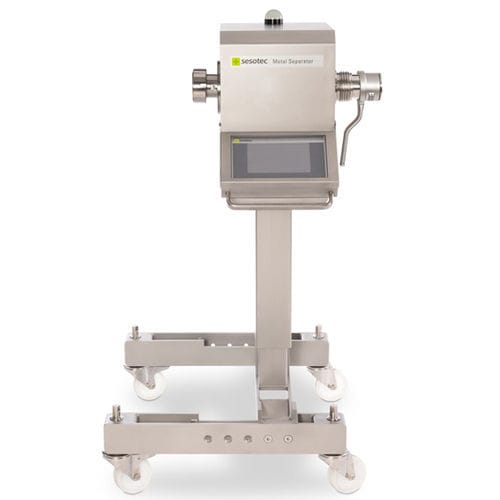

Metal detector with separator for filling applications LIQUISCAN VF+

gravitypackaging machinedigital

The LIQUISCAN VF+ metal separator is equipped with the GENIUS+ Control Unit (see "Control Units" brochure). State-ofthe-art microprocessor technology allows con-sistent digital signal processing with optimal interference immunity in accordance with stringent EU directives. The Control Unit is especially designed for automatic process sequences and for the requirements of quality control systems. As an option the LIQUISCAN VF+ metal separator is supplied on a mobile, height-adjustable stand. The low and well-balanced centre of gravity makes the system highly stable especially when it needs to be moved. Different separating systems that are optimally matched to the product properties guarantee a reliable separation of metallic contaminations. The piston valve is excellently suited for pasty products (e. g. sausage meat, minced meat, co-extruded sausage-cheese products). The ball valve is especially suited for liquid products and materials containing coarse pieces (e. g. ham sausage). Typical applications: • Minced meat / sausage production: Installed between vacuum filler and clipper or twisting unit • Packaging of processed cheese, spread cheese, or butter: Installed between vacuum filler and packaging machine • Gourmet salads and raw vegetable salads: Prior to the filling in buckets/trays/cups • Desserts, fruit preparations, bread spreads, chutneys, or BBQ and condiment sauces: Before the filling station
