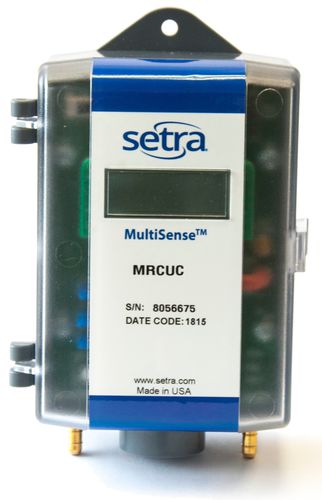

Differential pressure transducer MRC

capacitiveanalogDC

Setra’s Model MRC multi-range low differential pressure transducer uses a dead-ended capacitive sensing element that requires minimal amplification and delivers excellent accuracy and longterm stability. The MRC is the industries first multi-range sensor designed for critical environments. It is the only multi-range sensor available with ±0.5% FS accuracy and field selectable ranges down to 0.1” W.C., a requirement for critical applications. The MRC has 4 selectable ranges and 3 selectable outputs, easily adjustable on the job with a flip of a switch or jumper. The MRC is offered with 3 different housing configurations: Duct Probe, DINrail Mount or wall mount as well as a universal design that incorporates all 3 configurations in one to address any installation changes on the job site. The First 0.5% Accuracy Multi-Range Ever - The Setra MRC is the first multi-range transducer designed for use in Critical Environments. No other multi-range transducer product offers better than 1% FS accuracy; a requirement in most critical applications. The Setra MRC is available down to 0.1”W.C. with 0.5% FS accuracy. Field Selectable Universal Design - The MRC has 4 selectable ranges and 3 selectable outputs, giving the flexibility to make changes on the job site. The MRC is field configurable for range, mounting (DINrail, wall mount and duct mount), output (mA or voltage) and engineering units (W.C. or Pascals). This flexibility means that the contractor can use the MRC for all of their critical needs. Robust Enclosure for Harsh Environments -
