Differential pressure transmitter Model SRPM
membranedigital outputwith display

differential pressure transmitter
differential pressure transmitter
differential pressure transmitter
Add to favorites
Compare this product


Characteristics

Pressure type
differential
Technology
membrane
Output signal
digital output
Other characteristics
with display
Process temperature

Max.: 50 °C (122 °F)

Min.: 0 °C (32 °F)

Description

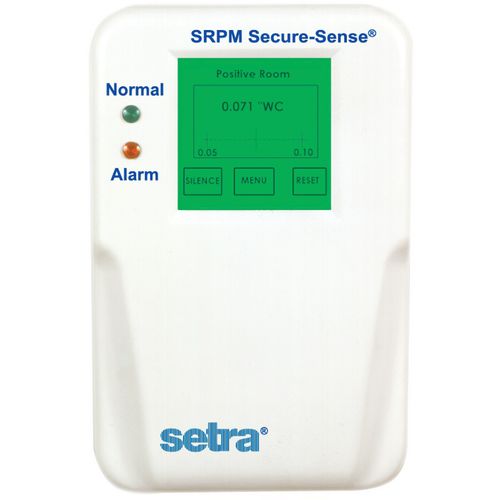

Product description The SRPM is Setra’s standard single room BACnet capable room pressure monitor for measuring low differential pressure in critical applications. The SRPM’s backlit touchscreen LCD provides an intuitive graphic user interface for ease of setup. The SRPM has a built-in calibration feature and only requires zeroing when installed, significantly reducing the cost of ownership. The SRPM monitors and alarms while providing a digital input for a door alarm. The SRPM is a simple, cost-effective solution which combines state-of-the-art electronics with Setra’s superior true differential pressure sensing technology to ensure safety in critical environments. The SRPM also incorporates two-level password protection. Monitor & Alarm Critical Rooms - The SRPM is most user friendly room pressure monitor on the market today. It has an intuitive touchscreen interface that allows the user to easily configure alarm set points, passwords and audible alarming conditions. With its bi-directional sensor, the unit can switch between protection and isolation room modes, or be put into standby mode when the room is not in use. On-Board Dead-Ended Pressure Sensor - Protection and isolation rooms are designed to adhere to strict standards in order to provide a proper barrier between the room and reference space. Unlike a flow-through design, the SRPM utilizes an on-board dead-ended low differential pressure sensor. This technology provides the user with a trusted solution & peace of mind that the sensor will prevent contaminated air from passing through it.
