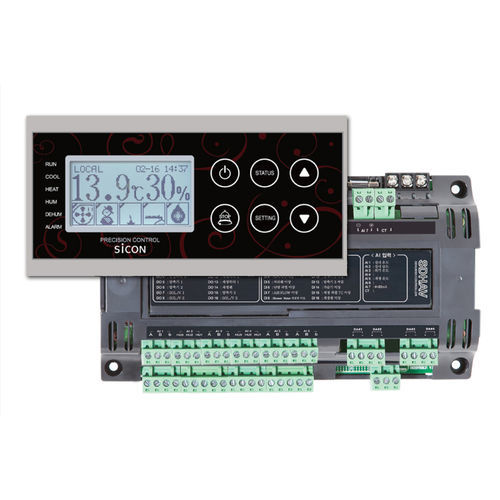

Dehumidifying control unit SDHAV-SB

humidityheatingwith display

Applicable to dehumidifier that is using to prevent rusting, sweating for pharmaceutical, chemical industry, plant, marine, precision electronics, food, cold storage, museum, plastic injection. • POWER : Supply : 100-240VAC 50/60Hz • MICOM : MCU : ATmega2560 • DI : Input port : 16 points(24VDC) / 1point(220VAC) • Power : None • DO : Output port : 16 points / 1point(SSR) • Method : 릴레이 접점 / PWM • Relay : 250V 3A / 24VDC • AI : Sensors : 4ch(PT100Ω) / 2ch(0-3VDC) • Humidity : 1ch(압력 or 온도) • CT : 1ch • AO : Output port : 4ch(4-20mA or 0-10VDC) • Load resistance : 4-20mA 출력시 500Ω • Comm. : Port : 4ch • Address : 1 ~ 99 • Baudrate : 9600, 19200bps • Parity bit : None • Stop bit : 1 bit • Distance : 1.2km • Protocol : MODBUS(2ch), Seungil(2ch) • RTC : Schedule : Daily, weekly, monthly • Circu. : Operation : -20~70℃, 5~95%(Non-condensate) • Storage : -30~80℃
