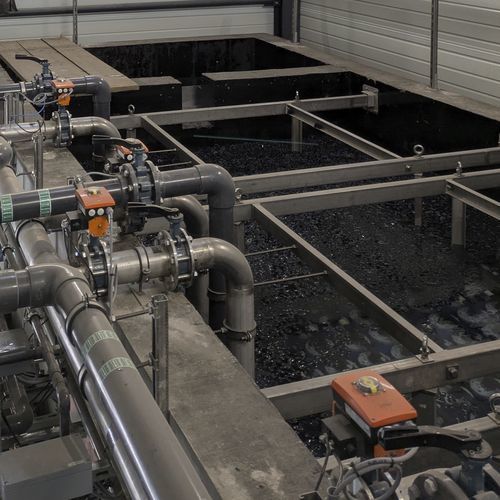

Moving bed biofilm bioreactor MBBR C-MEM™

for wastewater treatmentfor industry

The C-MEM™ membrane MBBR combines the advantages of MBR and MBBR technology in one integrated system. Biological wastewater treatment is carried out by suspended biomass and biofilm growing on mobile carriers, while solid-liquid separation is achieved by PFAS-free HDPE hollow fiber membranes. With a pore size of 0.02 μm, the system reliably removes up to 99.9999% (log 6) of bacteria, viruses, helminth eggs, and suspended solids. Closed cartridges allow low-maintenance operation, long service life, and fast cartridge replacement. The modular design enables flexible scaling for municipal and industrial applications as well as water reuse.
Product Features:

• Combined MBR and MBBR technology in one system
• Outside-in filtration with low TMP
• Closed cartridge design for low maintenance
• Mobile carriers to enhance biological treatment performance
• Energy-efficient membrane cleaning with air and water scouring
• In-situ CIP system without module removal
• High resistance to aggressive oxidizing cleaning chemicals
• Max. free chlorine (25 °C): 5,000 ppm (pH 9.5)
• Max. total chlorine contact: 1.0 million ppm·h cumulative
• Modular design for easy scaling and system adaptation
• PFAS-free. The C-MEM™ technology does not release per- or polyfluorinated chemicals during manufacturing or operation. It already complies with potential EU PFAS regulations and provides long-term planning security.
• Removal of particulate turbidity, bacteria, viruses, helminth eggs, and suspended solids up to 99.9999% (log 6), while dissolved substances such as minerals are retained.
