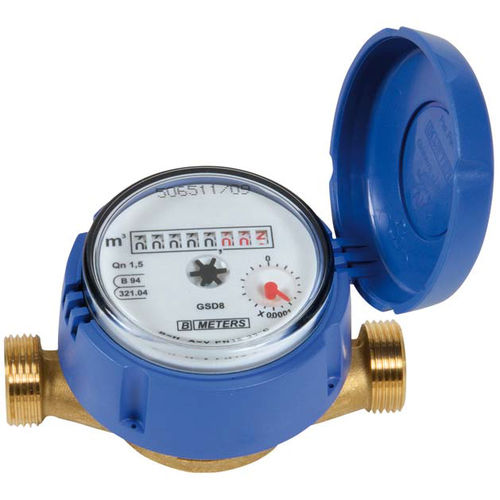

Dry dial water meter 1701 series

single-jet vane wheel

The 1701 single jet wheel bulk water meters are made with 2 models. The MID R 100 is made for horizontal applications with a horizontal dial, and the MID R 50 is for vertical or horizontal position with an upright dial. Both units are fitted with a rotating dry dial and a lid. These brass units are capable of direct reading on 8 numerical rolls. SPECIFICATIONS : • - Single jet • - MID R100 for horizontal position and horizontal dial (respect the flow direction mdicated by the arrow ) • - MID R50 for vertical position or horizontal position with vertical dial (respect the flow direction indicated by the arrow ) • - Rotating dry dial • - Magnetic movement • - Direct readmg on 8 numencal rolls • - With lid • - Protection indice IP68 • - Brass body USE: • - Water distribution • - Min and max température Ts : 0°C to 30°C for cold water type Ref.1701 • - Min and max température Ts : 30°C to 90°C for hot water type Ref.1702 • - Max Pressure Ps : 16 bars
